holo clock

About This Project

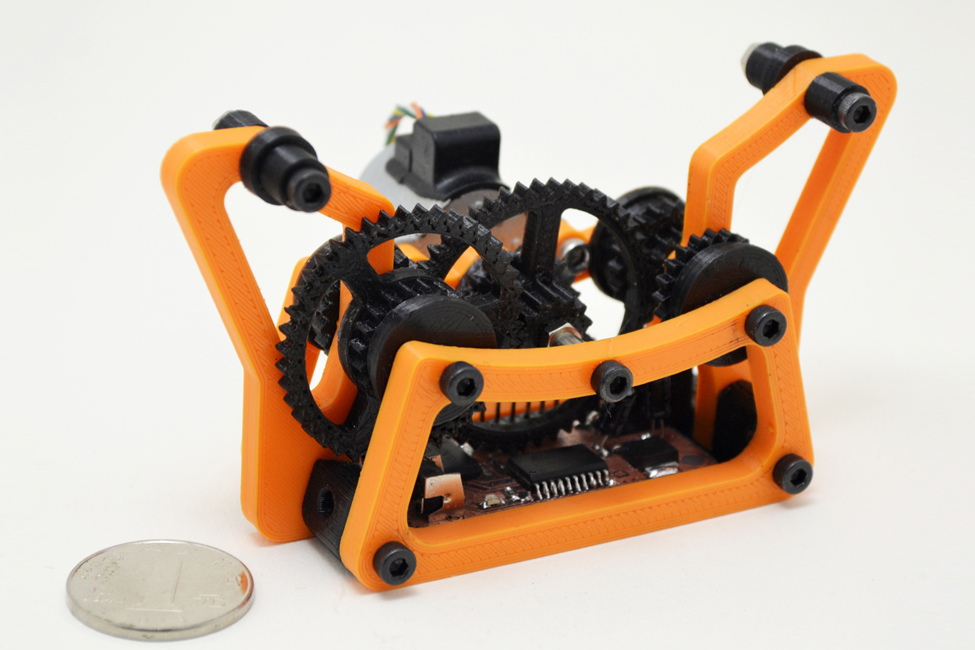

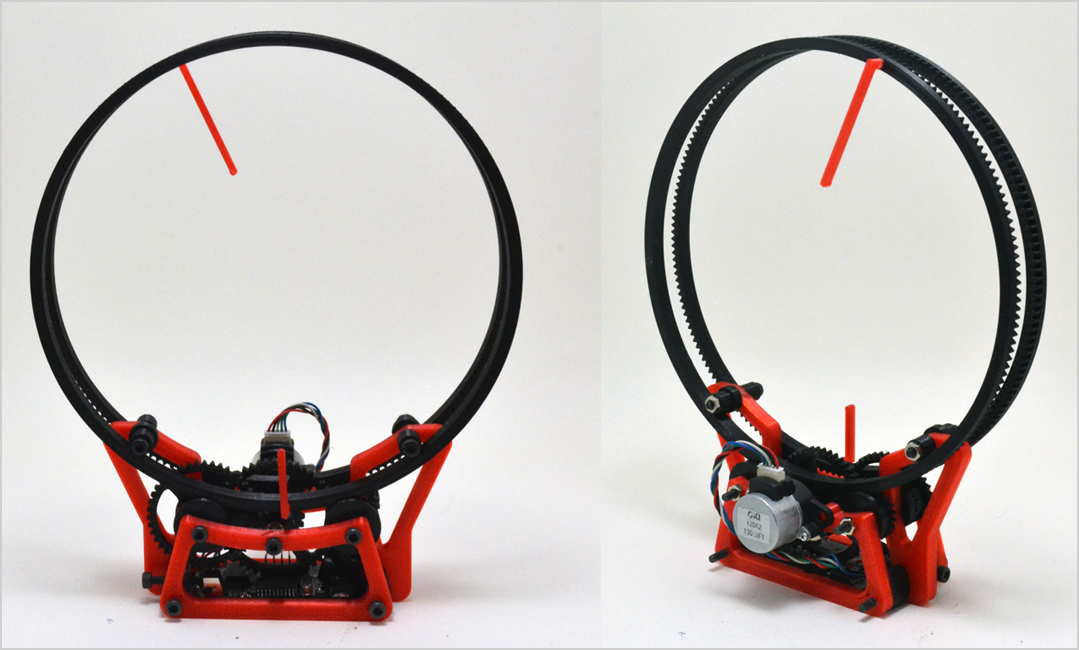

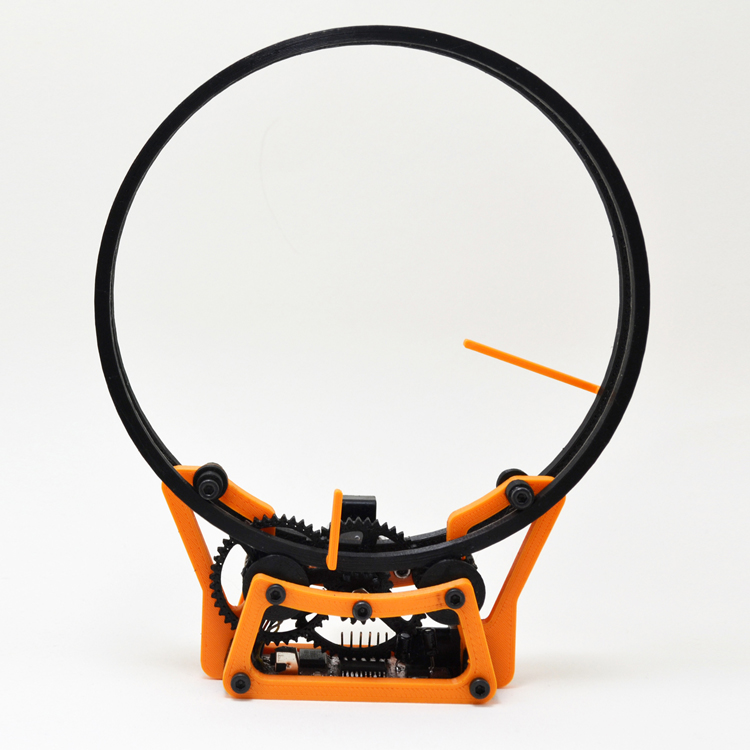

this is a simple clock based on a single geared stepper motor which i found in surplus 10 for a dollar… The motor is basically a 1:30 geared motor working at 12v with a 3mm shaft. The single motor is driven by a attiny2313 and l293dĀ circuit with the code written in arduino ide. The single motor moves a gear train which in turn moves the minute ring and hour ring. The attiny pulses the motor every minute to move the minute wheel and the hour wheel.

more info :
